4 inch hydraulic steel knockout puncher

Key Feature:
High efficiency and labor-saving - with built-in speeding up hydraulic apparatus
Compact, Light, Fast–Operate conveniently, puncher holes smooth without burr

Suit various tasks - comes with 6 pairs of punching dies
Suit various plates – Punch switchboard, power transmission, meter plate, carbon steel plate

Well-designed structure - reliable performance and simple maintenance

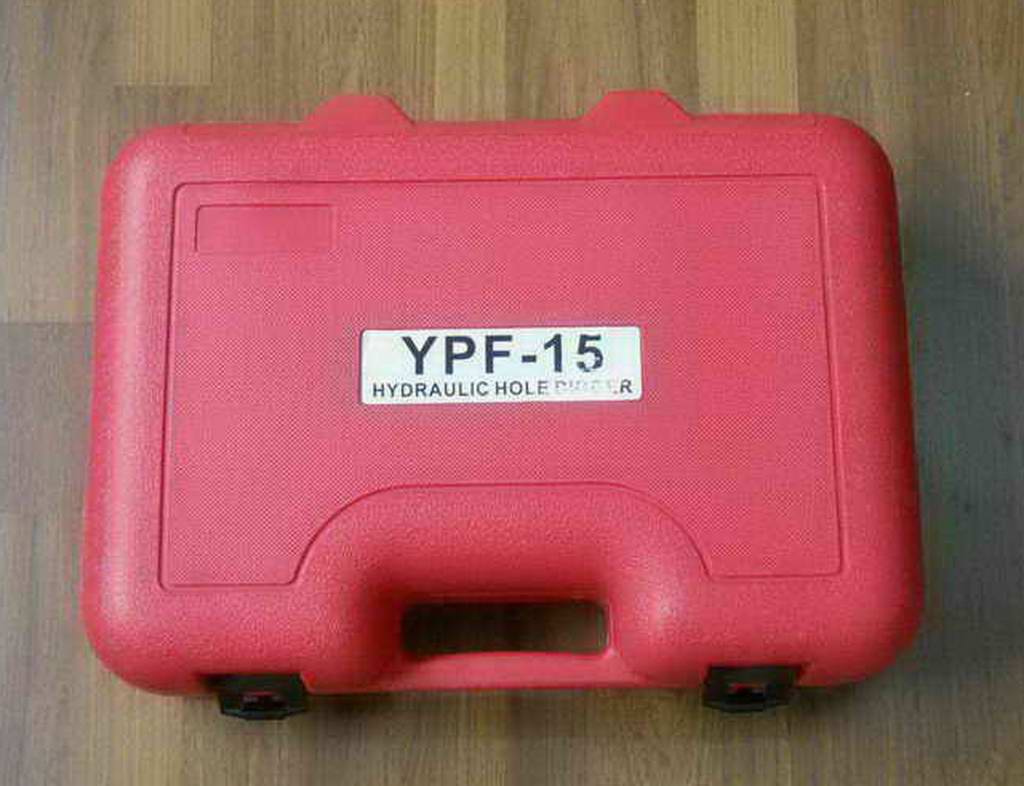

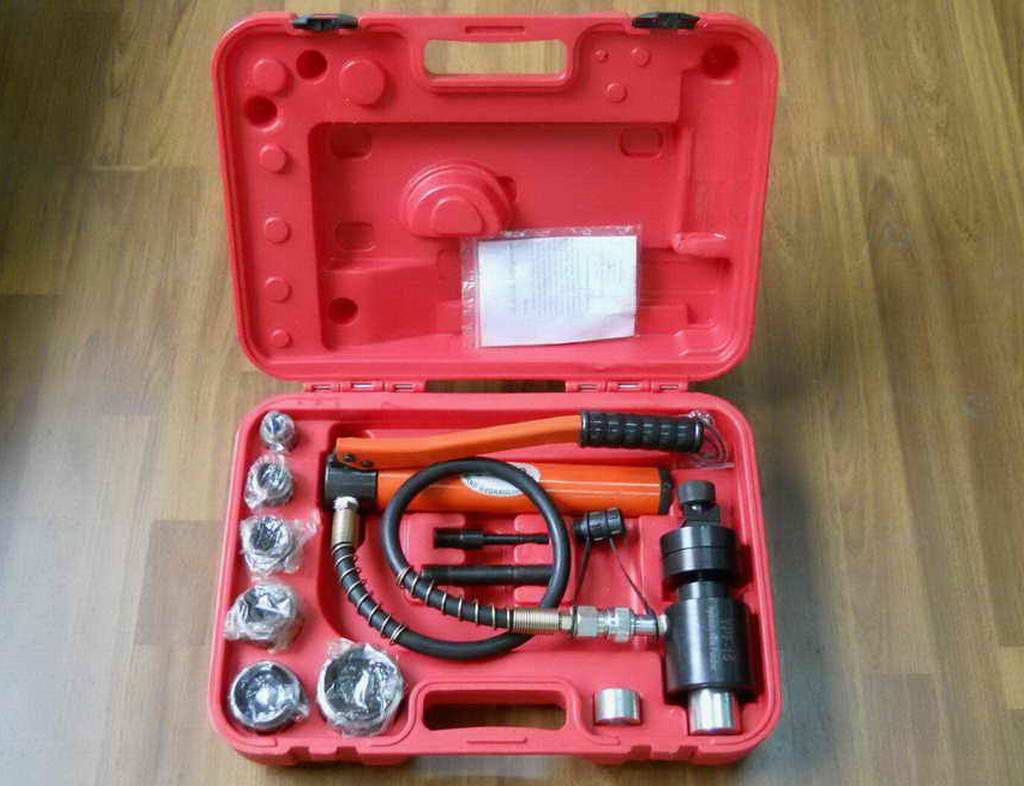

Easy transport - Puncher and its accessories can be put in a strong plastic carry case

Inquire Now

Product Details

Specification:

Max Working Pressure: 15 ton

Maximum Working Stroke: 25mm

Punching Die Qty: 6 pairs

Die Size:

Round dies: 3/4”, 1/2”, 1”, 1-1/4”, 1-1/2”, 2”,

Square dies: 32*32mm

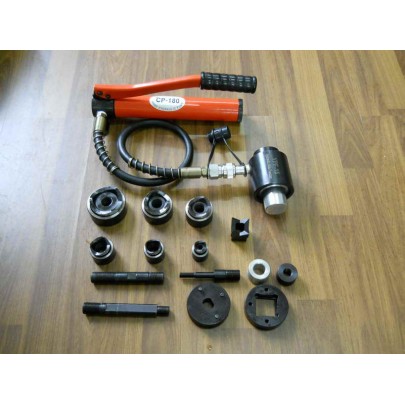

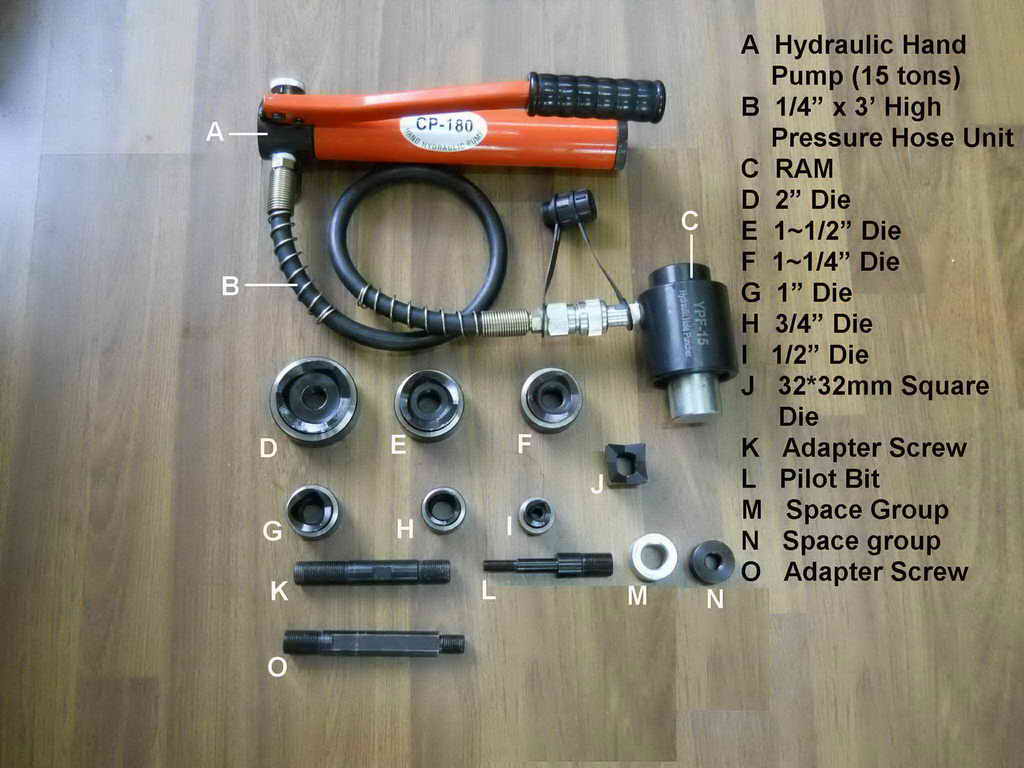

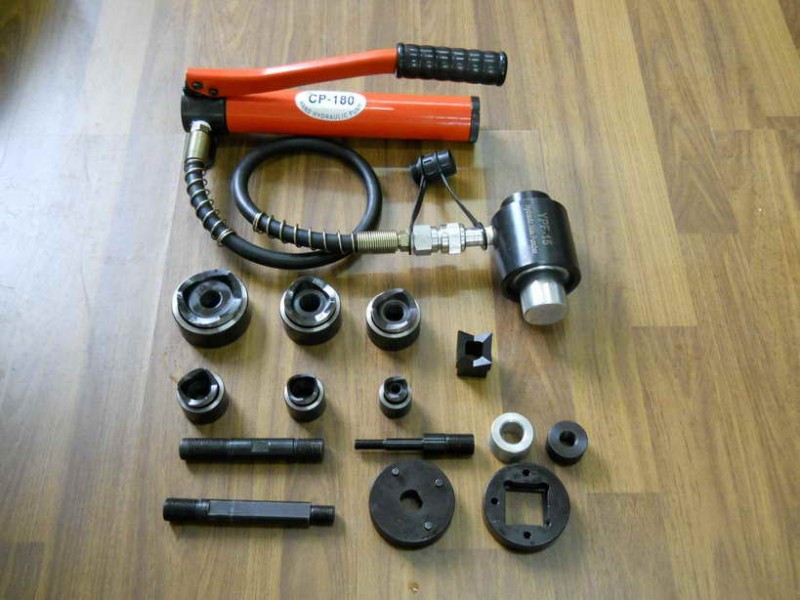

Package Includes:

1 x Hydraulic Hand Pump(8.9 ton)

1 x High pressure Hose Unit 1/4”x3”

1 x Ram

7 x Punching Dies

1 x Pilot Bit

2 x Space Group

2 x Adapter Screw

1 x Plastic Carry Case
1 x User Manual

Model	*YPF-15*
Output	*15T*
Max travel	*25mm*
Stainless Steel Plate thickness(mm)	*1.6mm*
Mild Steel Plate thickness(mm)	*3.2mm*
Reservoir Capacity	*25mm*
Weight	*5.4kg*
Hole Diameter	*1/2"(Φ21.8mm) 3/4"(Φ27.6mm) 1"(Φ34.1mm) 1.25"(Φ42.7mm) 1.5"(Φ48.7mm) 2"(Φ60.5mm) 32x32mm*
